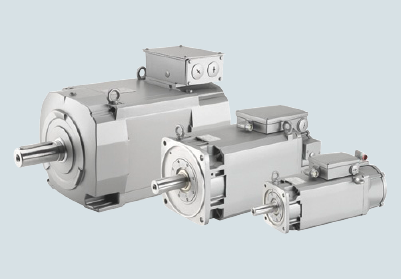

西门子主轴电机1PH8135-1MS03-0MA1

SIMOTICS M Compact induction
motor 2000rpm, 24.5kW, 117Nm,
51A, 372V; 5000rpm, 18.5kW,
47Nm, 52A, 425V; 1500rpm,
18.5kW, 118Nm, 51A, 283V forced
ventilation; direction of air
flow DE--> NDE; Degree of
protection IP55
INCREMENTAL ENCODER SIN/COS
1VPP 2048 S/R WITH ND-END AT
TERMINAL BOX (ENCODER
IC2048S/R) with TEMPERAT.
SENSOR KTY84-130
DESIGN IM B35 (IM V15, IM V35)
PLAIN SHAFT WITHOUT FITTED KEY;
BEARING: HIGH PERFORMANCE
VIBRATION SEVERITY GRADE
SPECIAL/B SHAFT AND FLANGE
ACCURACY GR. SPECIAL
TERMINAL BOX (ABOVE) CABLE
ENTRY ON THE RIGHT SIGNAL
CONNECTION D-END
