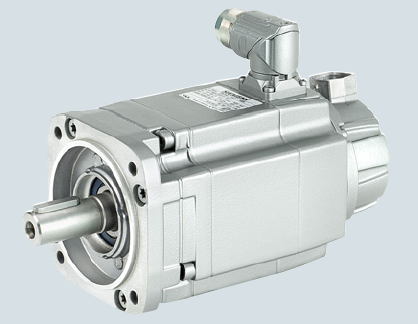

西门子主轴电机1PH8133-1DF00-1BE1

SIMOTICS M Compact induction
motor 1500rpm, 15 kW 96Nm, 34A,
342V 1750rpm, 17.5kW 96Nm, 34A,
392V 2000rpm, 20 kW 96Nm, 34A,
445V forced ventilation;
direction of air flow DE-->
NDE; Degree of protection IP55
Incremental encoder 22-bit
Without commutation position
(encoder IC22DQ) with
DRIVE-CLiQ interface
DESIGN IM B3 (IM V5, IM V6)
SHAFT WITH FITTED KEY FULL-KEY
BALANCING
BEARING: STANDARD WITH FIXED
BEARING, VIBRATION SEVERITY
GRADE: R/A, FLANGE ACCURACY: R
POWER CONNECTOR (ABOVE) CABLE
ENTRY ON THE RIGHT SIGNAL
CONNECTION D-END
