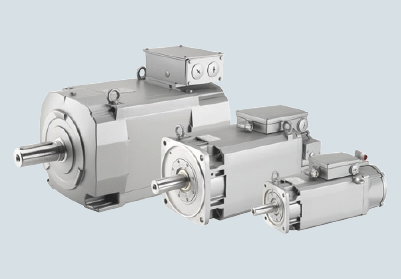

西门子主轴伺服电机1PH8101-1DF00-2BA1

SIMOTICS M Compact induction
motor 1500rpm, 3.7kW 24Nm,
12.5A, 265V 2000rpm, 4.3kW
22Nm, 12.5A, 304V 2000rpm,
4.7kW 22Nm, 12.5A, 343V forced
ventilation; direction of air
flow DE--> NDE; Degree of
protection IP55
Incremental encoder 22-bit with
commutation position (encoder
IC22DQ) with DRIVE-CLiQ
interface
DESIGN IM B3 (IM V5, IM V6)
SHAFT WITH FITTED KEY HALF-KEY
BALANCING
BEARING: STANDARD WITH FIXED
BEARING, VIBRATION SEVERITY
GRADE: R/A, SHAFT AND FLANGE
ACCURACY: R
TERMINAL BOX (ABOVE) CABLE
ENTRY ON THE RIGHT SIGNAL
CONNECTION D-END
