1PH8137-1DF00-2HB1

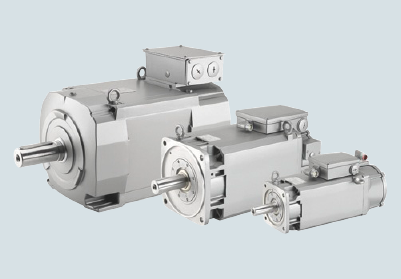

SIMOTICS M Compact induction
motor 1500rpm, 22kW, 140 Nm,
56A, 308V 1750rpm, 25kW, 136Nm,
56A, 352V 2000rpm, 28kW, 134Nm,
55A, 401V forced ventilation;
direction of air flow DE-->
NDE; Degree of protection IP55
Incremental encoder 22-bit
Without commutation position
(encoder IC22DQ) with
DRIVE-CLiQ interface
DESIGN IM B3 (IM V5, IM V6)
SHAFT WITH FITTED KEY HALF-KEY
BALANCING
BEARING: STANDARD, VIBRATION
SEVERITY GRADE: S/A, SHAFT AND
FLANGE ACCURACY: R
TERMINAL BOX (ABOVE) CABLE
ENTRY ON THE LEFT SIGNAL
CONNECTION D-END
