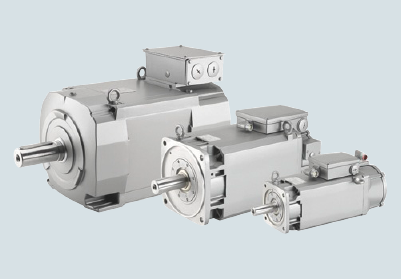

西门子1PH8系列主轴电机1PH8103-1SF02-3LA1

SIMOTICS M Compact induction
motor 1500rpm, 5.5 kW 35Nm,
13.1A, 342V 1750rpm, 6.3kW
34Nm, 13.5A, 412V 2000rpm, 7.0
kW 33Nm, 12.7A, 460 V forced
ventilation; direction of air
flow DE--> NDE; Degree of
protection IP55
Incremental encoder 19-bit
Without commutation position
(encoder IN19DQ) with
DRIVE-CLiQ interface
DESIGN IM B5 (IMV 1,IM V3)
PLAIN HOLLOW-SHAFT
BEARING: PERFORMANCE, VIBRATION
SEVERITY GRADE SPECIAL/B; SHAFT
A. FLANGE ACCURACY GR. SPECIAL
TERMINAL BOX (ABOVE) CABLE
ENTRY ON THE RIGHT SIGNAL
CONNECTION D-END
